Clean and Dust-Free Operation: Some ceramic tile cutting machines are designed with built-in water tanks and dust collection systems. These features help minimize the generation of dust and keep the work area clean, ensuring a healthier and more pleasant working environment.
Model :
QXZ-1600Motor :
220V 50Hz1550W 12000r/minMax size of saw blade :
Ф120 mmMax cutting depth 90°/45° :
30 mm/20 mmMax cutting length :
1600 mmSize of table :
1600 x 500 mmCooling water pump :
DC 24V 30W 9m 6L/minPacking size(mm) :
2280 x 590 x 570N.W/G.W :
62 / 85 KGThe use of tile cutting machine can greatly improve the efficiency and quality of tile construction, reduce costs and risks. Accept the full range of construction needs, equipped with cutting tables and accessories, and have the advantages of efficient and easy operation, so it is welcomed by the construction site.
The parameters of our products:

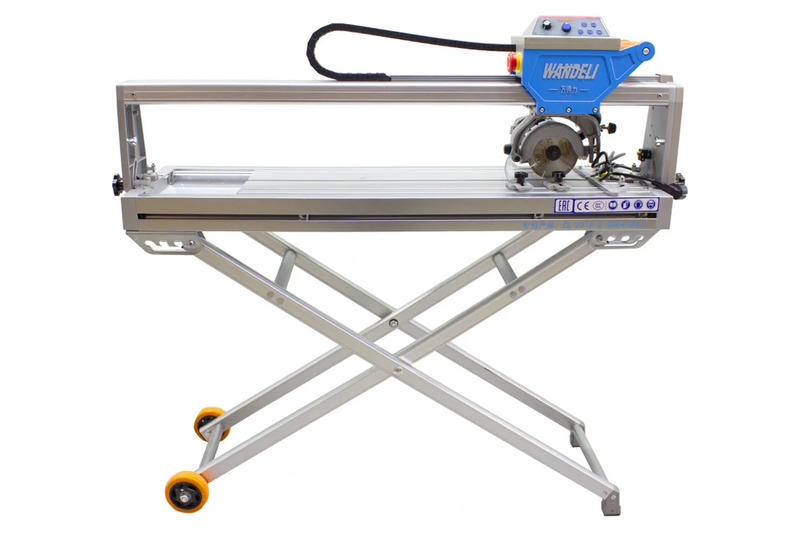

Brand: WANDELI Automatic Series For Cutting Ceramic Tile Panels
Model: QXZ-1600
Power supply type: AC power supply
Drive motor: 220V 50HZ 1550W 12000r/min
Cooling water pump: DC 24V 36W 9M 6L/min
Max blade size: 120mm Max cutting length: 1600mm
Maximum cutting depth 90°/45° : 30mm/20mm
Table size: 1600×500mm
3C Certificate number: 2006010516190278
Product patent number: ZL 2015-2-0064100.0
Scope of application: construction engineering, stone processing, building materials construction, decoration
Rated voltage range: AC single phase and DC above 50V 250V and below
