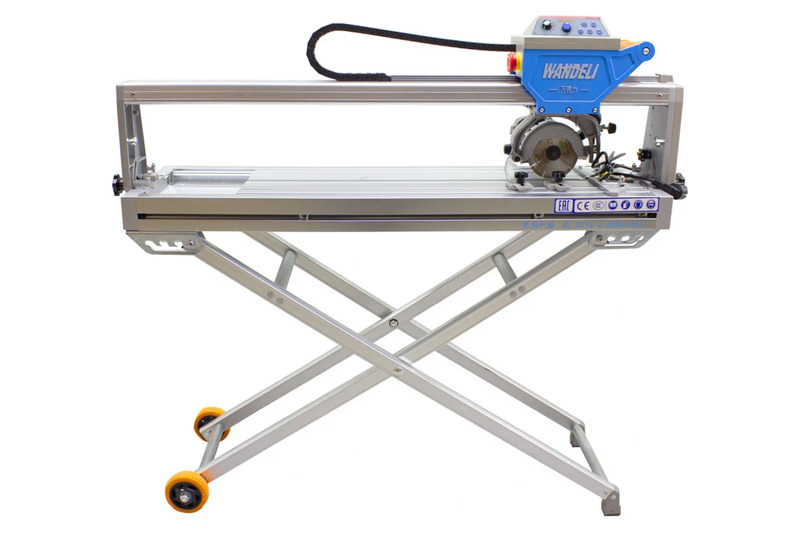

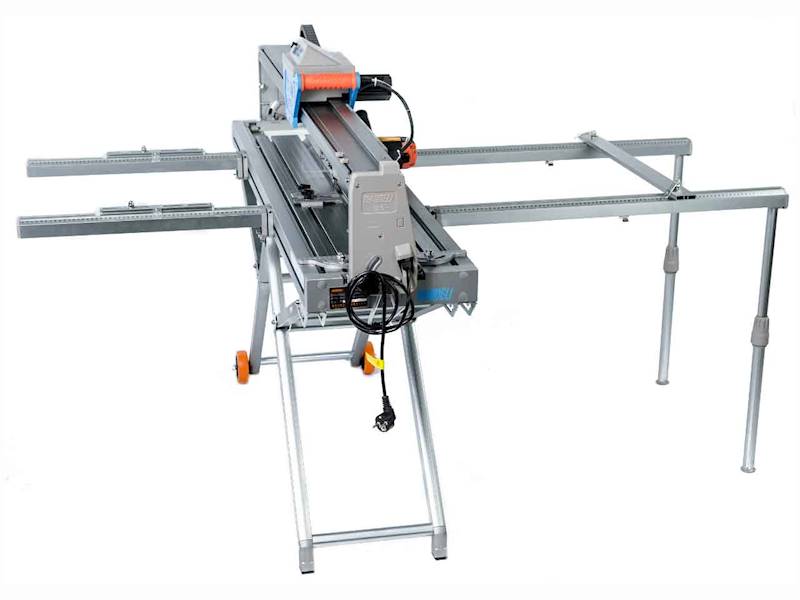

Designed to save time and reduce effort, Electric Tile Cutting Machines combine speed with performance. Their streamlined operation allows professionals to complete tasks faster while maintaining consistent cutting quality.
Model :
QXZ-1800Motor :
220V 50Hz1550W 12000r/minMax size of saw blade :
Ф120 mmMax cutting depth 90°/45° :
30 mm/20 mmMax cutting length :
1800 mmSize of table :
1800 x 500 mmCooling water pump :
DC 24V 30W 9m 6L/minPacking size(mm) :
2480 x 590 x 570N.W/G.W :
66 / 90 KGReduce waste.The tile cutting machine can accurately cut the tile, reducing the excessive waste of manpower. At the same time, precise cutting can also reduce the waste of tiles and reduce costs during the construction process.
The parameters of our products:
Brand: WANDELI Automatic Series For Cutting Ceramic Tile Panels
Model: QXZ-1800
Power supply type: AC power supply
Drive motor: 220V 50HZ 1550W 12000r/min
Cooling water pump: DC 24V 36W 9M 6L/min
Max blade size: 120mm Max cutting length: 1800mm
Maximum cutting depth 90°/45° : 30mm/20mm
Table size: 1800×500mm
3C Certificate number: 2006010516190278
Product patent number: ZL 2015-2-0064100.0
Scope of application: construction engineering, stone processing, building materials construction, decoration
Rated voltage range: AC single phase and DC above 50V 250V and below
